询ABB产品 --20240904
ABB
询以下ABB产品，
出口国家中东
更多项目请咨询采购Nina
电话：13651478712 微信同号；

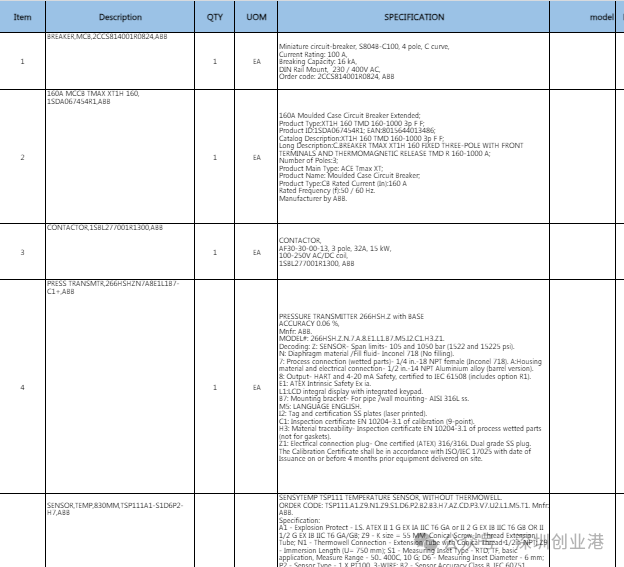

| Item | Description | QTY | UOM | SPECIFICATION |
| 1 | BREAKER,MCB,2CCS814001R0824,ABB | 1 | EA | Miniature circuit-breaker, S804B-C100, 4 pole, C curve, Current Rating: 100 A, Breaking Capacity: 16 kA, DIN Rail Mount, 230 / 400V AC, Order code: 2CCS814001R0824, ABB |
| 2 | 160A MCCB TMAX XT1H 160, 1SDA067454R1,ABB | 1 | EA | 160A Moulded Case Circuit Breaker Extended; Product Type:XT1H 160 TMD 160-1000 3p F F; Product ID:1SDA067454R1; EAN:8015644013486; Catalog Description:XT1H 160 TMD 160-1000 3p F F; Long Description:C.BREAKER TMAX XT1H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 160-1000 A; Number of Poles:3; Product Main Type: ACE Tmax XT; Product Name: Moulded Case Circuit Breaker; Product Type:CB Rated Current (In):160 A Rated Frequency (f):50 / 60 Hz. Manufacturer by ABB. |
| 3 | CONTACTOR,1SBL277001R1300,ABB | 1 | EA | CONTACTOR, AF30-30-00-13, 3 pole, 32A, 15 kW, 100-250V AC/DC coil, 1SBL277001R1300, ABB |
| 4 | PRESS TRANSMTR,266HSHZN7A8E1L1B7-C1+,ABB | 1 | EA | PRESSURE TRANSMITTER 266HSH.Z with BASE ACCURACY 0.06 %, Mnfr: ABB. MODEL#: 266HSH.Z.N.7.A.8.E1.L1.B7.M5.I2.C1.H3.Z1. Decoding: Z: SENSOR- Span limits- 105 and 1050 bar (1522 and 15225 psi). N: Diaphragm material /Fill fluid- Inconel 718 (No filling). 7: Process connection (wetted parts)- 1/4 in.-18 NPT female (Inconel 718). A:Housing material and electrical connection- 1/2 in.-14 NPT Aluminium alloy (barrel version). 8: Output- HART and 4-20 mA Safety, certified to IEC 61508 (includes option R1). E1: ATEX Intrinsic Safety Ex ia. L1:LCD integral display with integrated keypad. B7: Mounting bracket- For pipe /wall mounting- AISI 316L ss. M5: LANGUAGE ENGLISH. I2: Tag and certification SS plates (laser printed). C1: Inspection certificate EN 10204–3.1 of calibration (9-point). H3: Material traceability- Inspection certificate EN 10204-3.1 of process wetted parts (not for gaskets). Z1: Electrical connection plug- One certified (ATEX) 316/316L Dual grade SS plug. The Calibration Certificate shall be in accordance with ISO/IEC 17025 with date of Issuance on or before 4 months prior equipment delivered on site. |
| 5 | SENSOR,TEMP,830MM,TSP111A1-S1D6P2-H7,ABB |
1 | EA | SENSYTEMP TSP111 TEMPERATURE SENSOR, WITHOUT THERMOWELL. ORDER CODE: TSP111.A1.Z9.N1.Z9.S1.D6.P2.B2.B3.H7.AZ.CD.P3.V7.U2.L1.M5.T1. Mnfr: ABB. Specification: A1 - Explosion Protect - I.S. ATEX II 1 G EX IA IIC T6 GA or II 2 G EX IB IIC T6 GB OR II 1/2 G EX IB IIC T6 GA/GB; Z9 - K size = 55 MM, Conical Screw-In Thread Extension Tube; N1 - Thermowell Connection - Extension Tube with Conical Thread 1/2in NPT; Z9 - Immersion Length (U= 750 mm); S1 - Measuring Inset Type - RTD, TF, basic application, Measure Range - 50.. 400C, 10 G; D6 - Measuring Inset Diameter - 6 mm; P2 - Sensor Type - 1 X PT100, 3-WIRE; B2 - Sensor Accuracy Class B, IEC 60751. B3 - Connection Head Type /Material - BUZHD /Aluminium, high cover with display, hinged; H7 - Transmitter - TTH200-HART, EX version, programmable, Output 4-20 MA; AZ - Transmitter Measuring Range (0 - 200 C); CD - Inspection certificate according EN 10204-3.1, sensor calibration, single RTD. P3 - 3 points of calibration; V7 - standard calibration temperature: 0C, 100C and 200C; U2 - cable entry options – 1x1/2in. NPT, without cable gland. L1 - Display LCD Indicator Type AS; M5 - Language - English; T1 - Tag Plate - Stainless Steel with Tag No. Sensor Length - M=U+K+25mm= 750+55+25=830mm. U=750mm. K=55mm. The Calibration Certificate shall be in accordance with ISO/IEC 17025 with date of Issuance on or before 4 months prior equipment delivered on site |
| 6 | RELAY REF615,HBFFAEAGNDA1BNA1XG,ABB |
1 | EA | PROTECTION AND CONTROL IED FOR MEDIUM VOLTAGE APPLICATIONS, TYPE REF615, FEEDER PROTECTION AND CONTROL, ORDER CODE HBFFAEAGNDA1BNA1XG, CONFIGURATION VERSION F |
