印度公司采购显示屏 -- 20250618

显示屏

印度公司采购显示屏

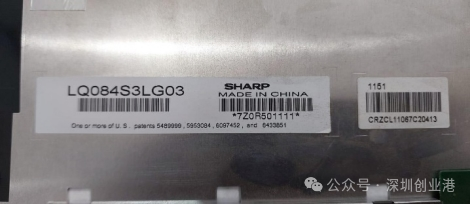

1. Model: LQ084S3LG03 (二手也可以接受)   Size: 8.4 inches

2. Type: a-Si TFT-LCD, liquid crystal module

3. Resolution: 800 (RGB) × 600, SVGA, 119PPI

4. Pixel layout: RGB vertical strip

5. Display area: 170.4 (W) × 127.8 (H) mm

6. Appearance size: 199.5 (W) × 154 (H) × 12.45 (D) mm

7. Opening area: 173.4 (W) × 130.8 (H) mm

8. Surface treatment: matte, Hard coating (2H)

9. Display brightness: 330 cd/m² (Typ.)

10. Contrast: 450:1 (Typ.) (transmission)

11. Response time: 35 (Typ.) (Tr+Td) ms

12. Viewing angle: 65/65/60/55 (Typ.)(CR≥10)

13.Display mode: TN, normally white display, transmissive 14.Supported colors: 262K/16.7M

15.Light source type: WLED, 50K hours, including LED driver

16.Weight: 320g (Max.)

17.Frame frequency: 60Hz

18.Interface type: 20 pins LVDS (1 ch, 6/8-bit), terminal

19.Voltage supply: 3.3V (Typ.) Application environment:

20.Operating temperature: -30 ~ 75 °C;

Storage temperature: -30 ~ 75 °C; Vibration resistance: 2.0G (19.6 m/s²)

数量:5PCS
